TesPro™ Equipment Inc.

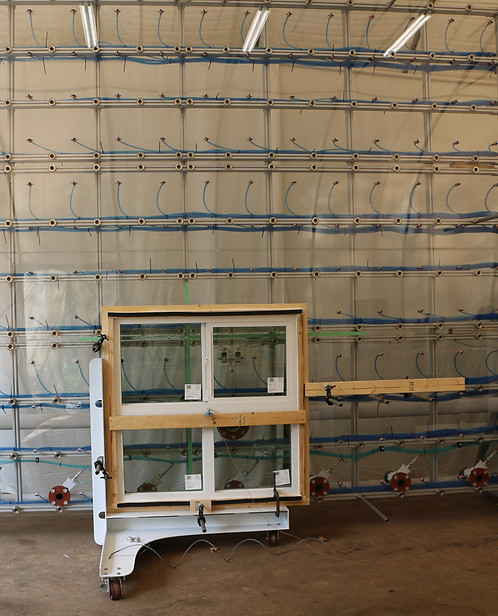

This TesPro™ Automated Window Test Wall can accommodate test samples a maximum of 3530mm in height and 4750mm in width.

​

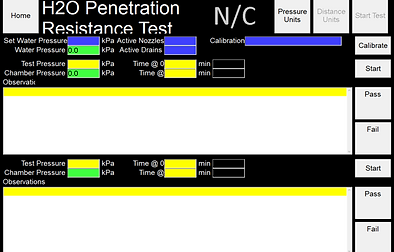

“Automated” refers to the testing software which controls the airflow, water pressure, and sequence timing for any of several tests, while also recording data such as sample deflection, ambient temperature, barometric pressure, humidity, differential air pressures, and water pressure using sensors, in accordance with standardized measuring and pass/fail criteria.  The software performs calculations and aids to produce test reports by collecting and organizing data in digital file format.



The test wall can test samples for air leakage, water penetration and structural performance.
